Description

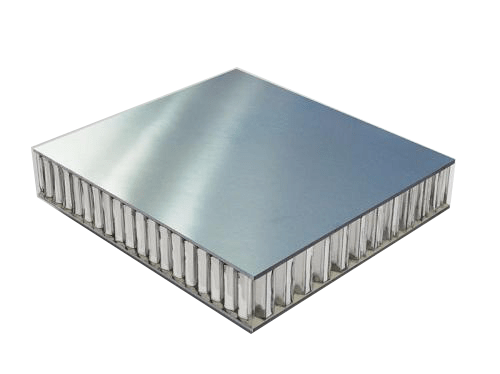

Aluxbond aluminium honeycomb panel are sandwiched by two sheets of aluminium skin with a layer of aluminium honeycomb core; rigid and fire tested to A2 against standard EN 13501-1.
Advantages
Extremely Low Weight
Excellent Strength
High Resistance to Moisture
High Resistance to Corrosion
Excellent Thermal Conductivity
Noncombustible
Applications
Transport
Marine
Aviation
Architectural
Industrial
Furniture etc.
Specifications
| Panel Thickness (mm) | 6, 10, 12, 15, 20, 50 or customized |
| Alu Skin Thickness (mm) | 0.50, 0.60, 0.70, 0.80, 1.0 or customized |
| Alloy | 3003, 5005 |
| Coating | PVDF, PE, Anodization etc. |
| Width (mm) | 1000, 1200, 1220, 1500, 2000 or customized |
| Length (mm) | 2440, 3050, 4880 or customized |
| Core Foil Thickness (mm) | 0.05, 0.08 or customized |
| Core Hexagonal Side (mm) | 4, 6, 12 or customized |
The skin covers also could be replaced by other kind of metal, fiber glass, acrylic, PVC, wood, stone; there are also several other types of honeycomb cores available, polypropylene (PP) honeycomb core, polycarbonate (PC) honeycomb core, phenolic resin impregnated aramid paper core.
